Barracuda® Hydrodynamic Separator

The Barracuda is market-changing, stormwater quality technology. A high-performance, vortex hydrodynamic separator, the Barracuda removes total suspended solids (TSS) and offers quick installation and multiple pipe configurations.

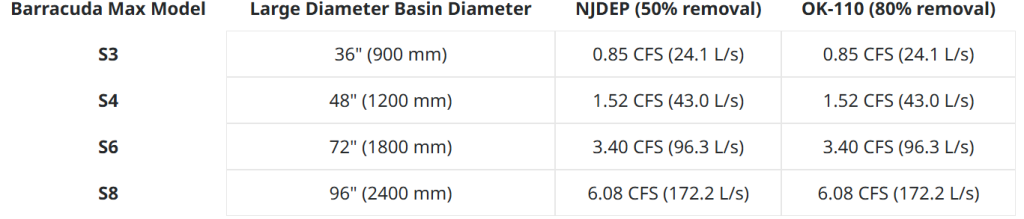

Product Specifications

Overview

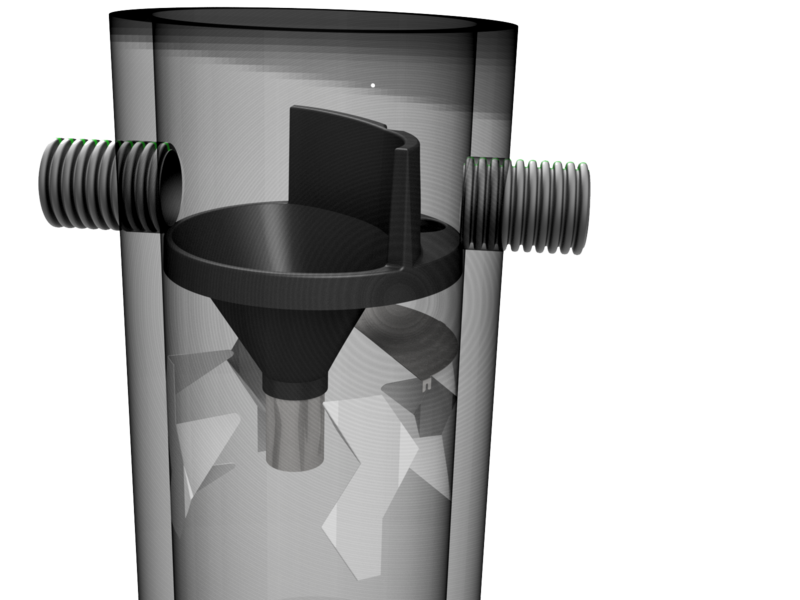

The Barracuda is a high-performance vortex hydrodynamic separator designed to remove suspended solids in order to protect the public waterways from pollutants of concern.

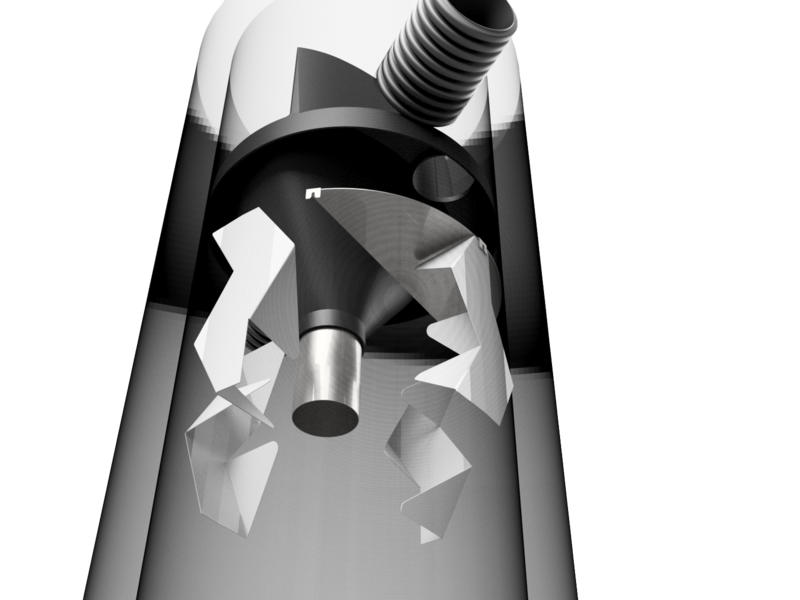

Named for its “teeth”, a revolutionary design feature, the Barracuda system mitigates turbulence in the sump area to prevent resuspension of captured contaminants. The apparatus is fabricated and designed for quick and easy field assembly. Plus, it’s easy to maintain using a vacuum truck or comparable equipment.

The Barracuda is an inline stormwater treatment unit capable of conveying 100% of the design peak flow and built to remove at least 80% of the suspended solids on an annual aggregate removal basis.

Features and Benefits

Single manhole design
Variable inlet/outlet angle configurations (not just 180 degree orientation)
Internal bypass for inline installation (where applicable)
All units can be installed into a standard precast manhole
4’ units can be factory fabricated in HP manholes for quick delivery with a light, easy to install structure
In-stock components for quick delivery.
No elevation loss between the inlet and outlet
Surface inspection and maintenance with no confined space entry.

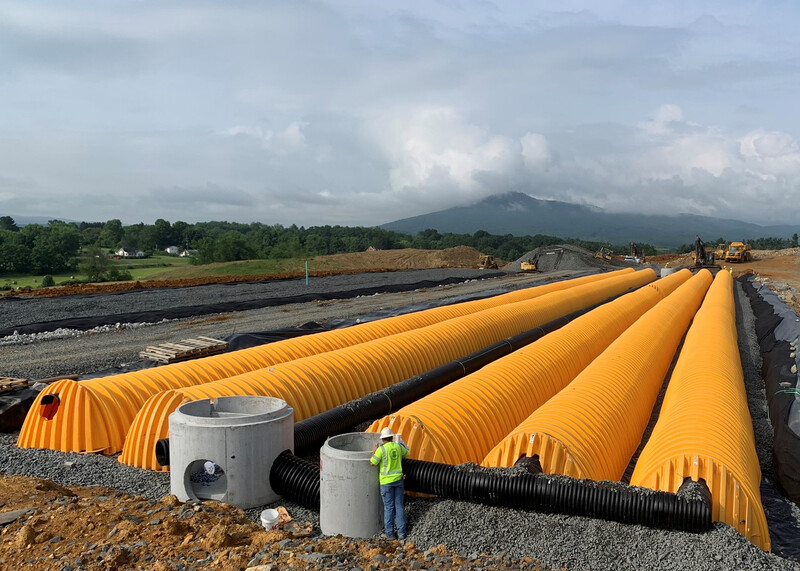

Barracuda + StormTech Isolator Row PLUS
